Compactors

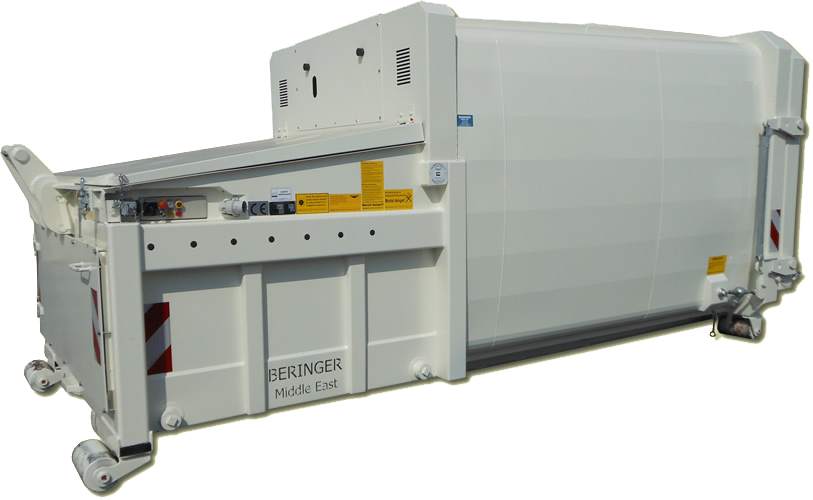

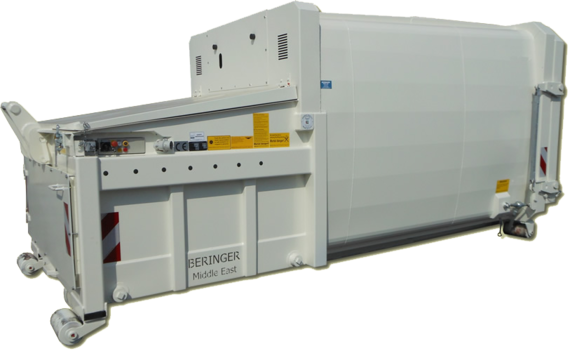

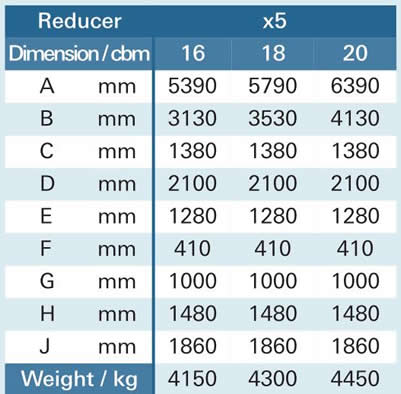

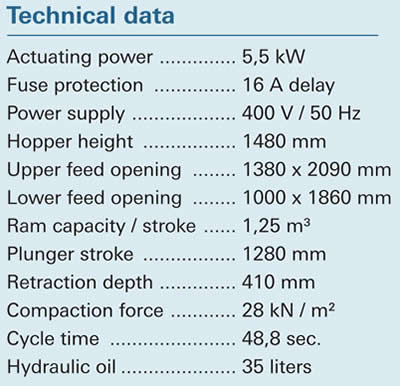

Products - Compactors reducer x5 (standard hopper)

  • Compactor for hook-lift systems manufactured according to DIN 30 730 or local standard
  • Smoothline construction conical shape
  • Feed opening 1380 x 2090 mm
  • Liquid proof up to 250 mm
  • Primed and coated in RAL colour of your choice

Standard equipment

  • Lid installed front sides
  • Pick-up system in the rear with 2 rollers front sides
  • Pick up system fold down and hinged at front side
  • With paper rack
  • With steel wiper in front of ram plate
  • 80 % fill level signal

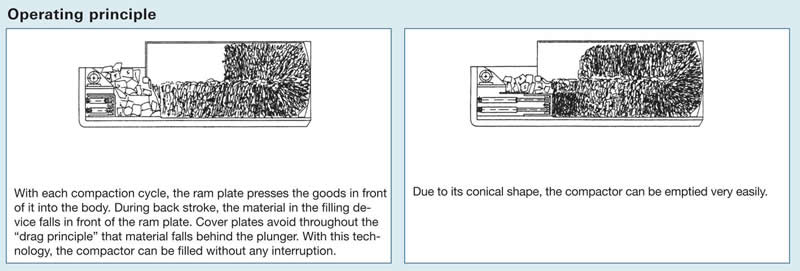

Operating principle

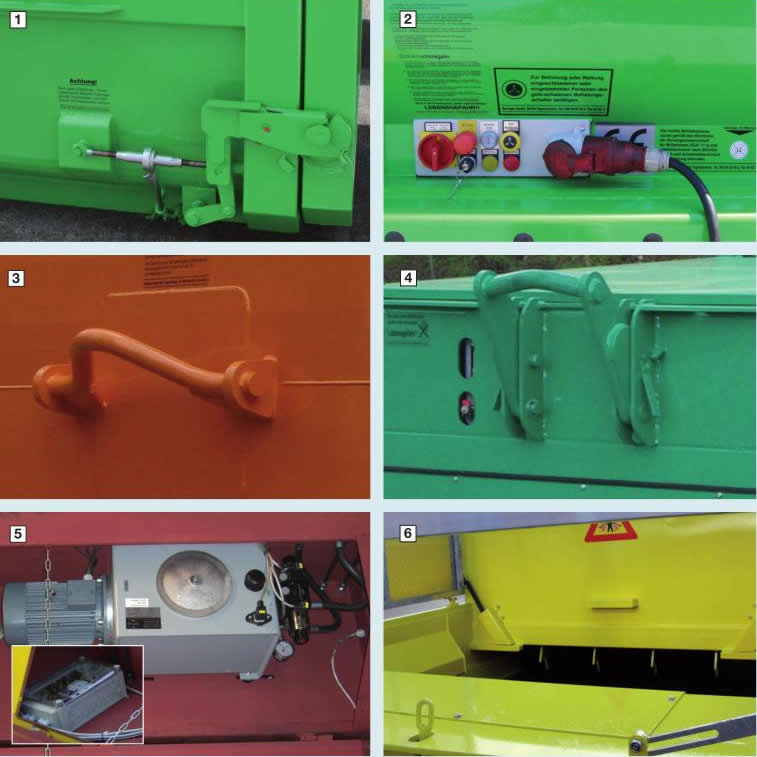

Quality marks

  1. Safety lock at cleanout door
  2. Control panel - safely installed
  3. Hook at backside for manoeuvering purpose
  4. Foldable hook at front side for transport purpose
  5. Robust electrics
  6. Paper rack

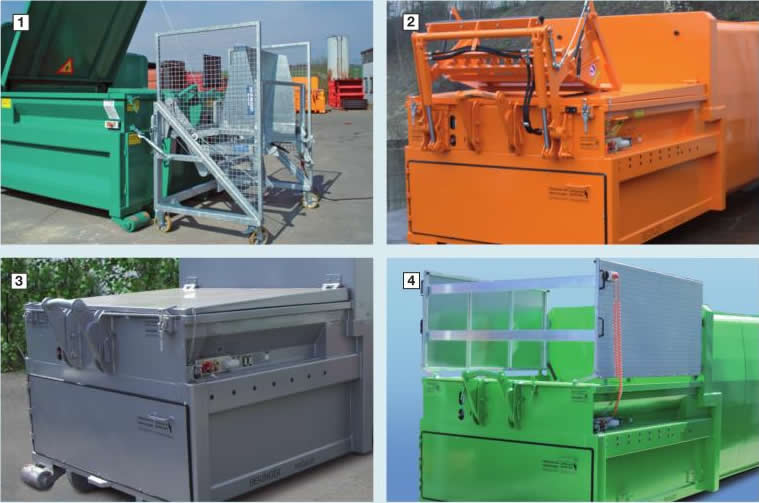

Options

  1. Mobile bin lifter (for bins according to EN 840 from 120 ltrs. up to 1100 ltrs.)
  2. Integrated bin lifter (for bins according to EN 840 from 120 ltrs. up to 1100 ltrs.)
  3. Lid installed frontsides
  4. Lid divided longsides

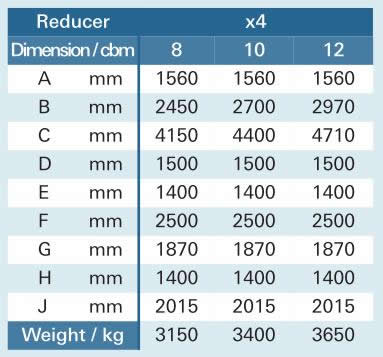

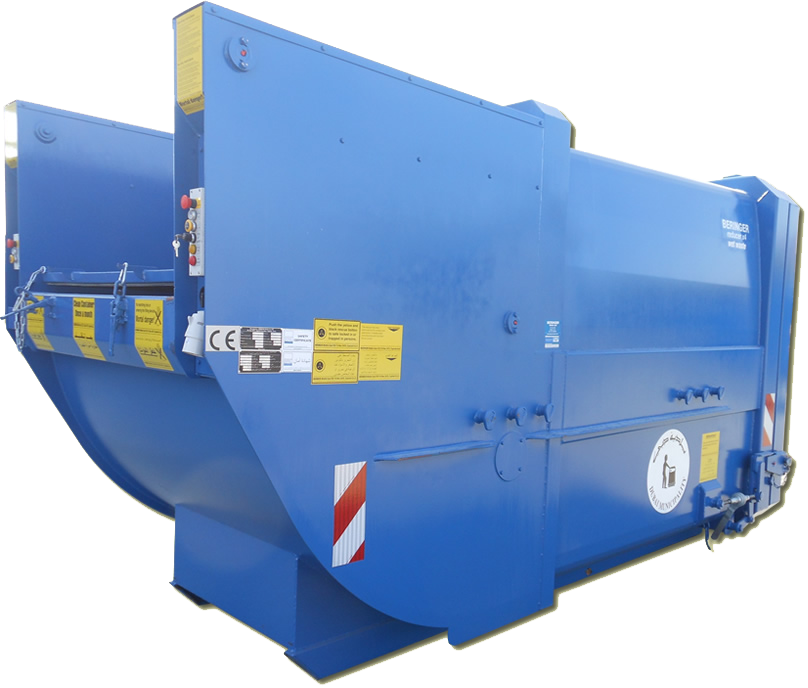

Products - Compactors Pendulum compactor x4 "wet waste specs"

  • Mobile compactor for chain loader systems
  • Smoothline construction, conical shape
  • Control panels safely installed on left and right side
  • “wet waste” fully liquid proof
  • Header and body welded in one piece
  • Feed opening 1400 x 1380 mm
  • the compactor is especially designed for compacting of waste with high liquid quote (e.g. kitchen waste, fruits and vegetables)
  • Primed and coated in RAL colour of your choice

Standard equipment

  • lid installed front sides
  • automatic phase inverter relay
  • cleanout door liquid proof
  • 80 % fill level signal

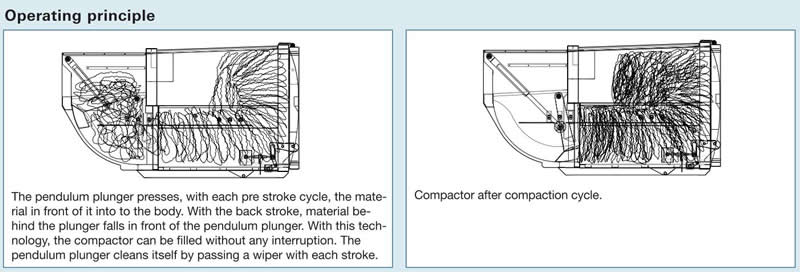

Operating principle

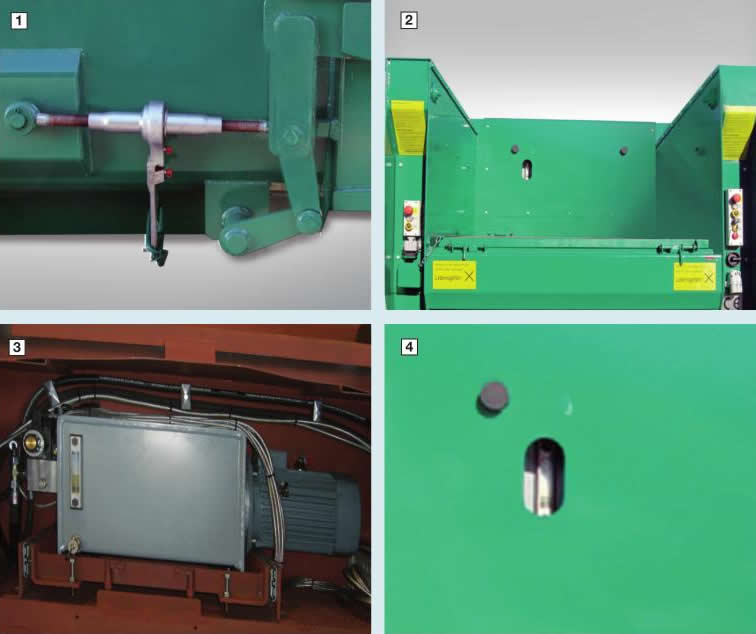

Quality marks

  1. Saftey lock with threaded ratchet for easy opening even under pressure
  2. Control panel - safely installed on both sides
  3. Robust electrics
  4. Oil level indicator

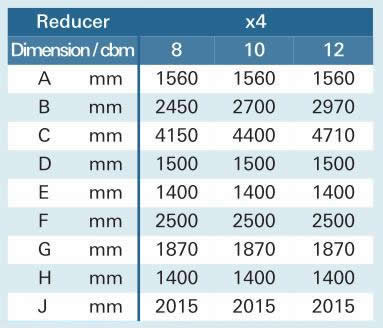

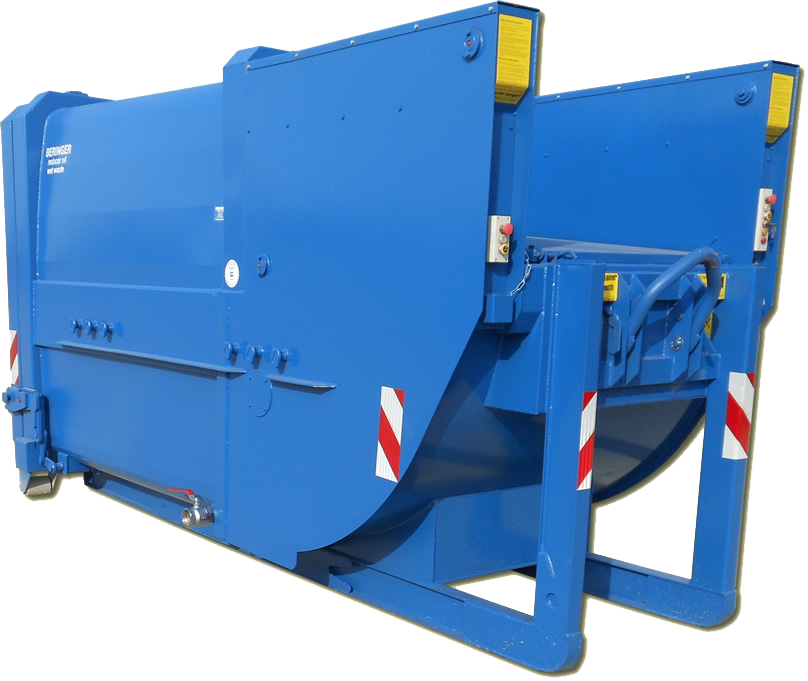

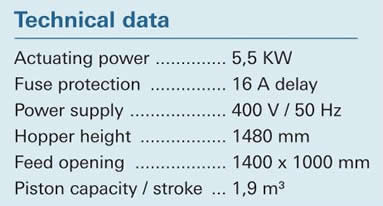

Products - Compactors Pendulum Compactor x4 multi-purpose, „wet waste specs.“

  • Mobile compactor for chain loader systems and hook-lift systems
  • Smoothline construction, conical shape
  • With chain-bolts, sub-frame and hook
  • Control panels safely installed on left and right side
  • "wet waste” fully liquid proof
  • Header and body welded in one piece
  • Feed opening 1400 x 1000 mm
  • the compactor is especially designed for compacting of waste with high liquid quote (e.g. kitchen waste, fruits and vegetables)
  • Primed and coated in RAL colour of your choice

Standard equipment

  • lid installed front sides
  • automatic phase inverter relay
  • cleanout door liquid proof
  • 80 % fill level signal

Operating principle

Quality marks

  1. Saftey lock with threaded ratchet for easy opening even under pressure
  2. Control panel - safely installed on both sides
  3. Robust electrics
  4. Oil level indicator

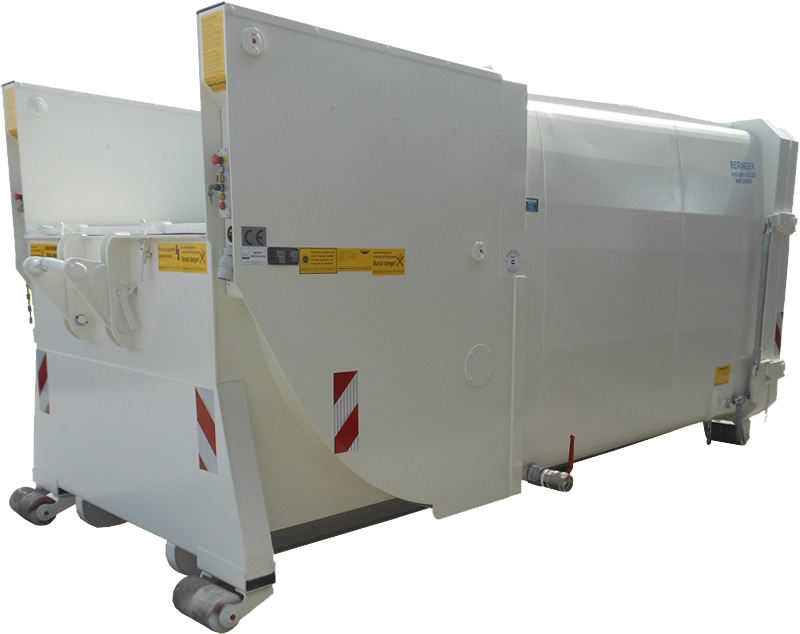

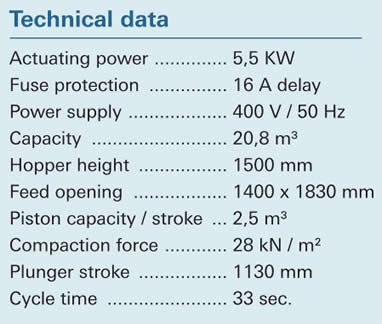

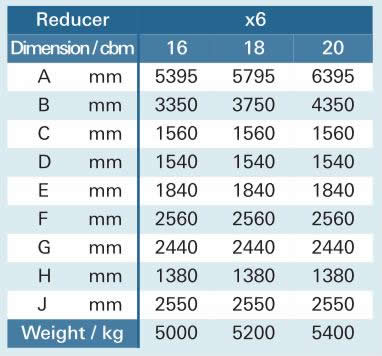

Products - Compactors Pendulum compactor x6 "wet waste specs"

  • Mobile compactor for hook-lift systems
  • Smoothline construction, conical shape
  • Control panels safely installed on left and right side
  • “wet waste” fully liquid proof
  • Header and body welded in one piece
  • Feed opening 1380 x 1840 mm
  • the compactor is especially designed for compacting of waste with high liquid quote (e.g. kitchen waste, fruits and vegetables)
  • suitable for BERINGER mobile bin lifter
  • Primed and coated in RAL colour of your choice

Standard equipment

  • lid installed front sides
  • automatic phase inverter relay
  • cleanout door liquid proof
  • 80 % fill level signal

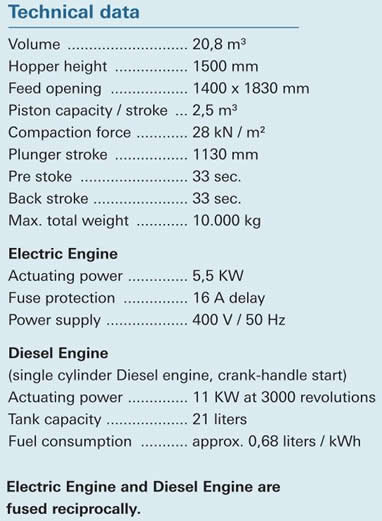

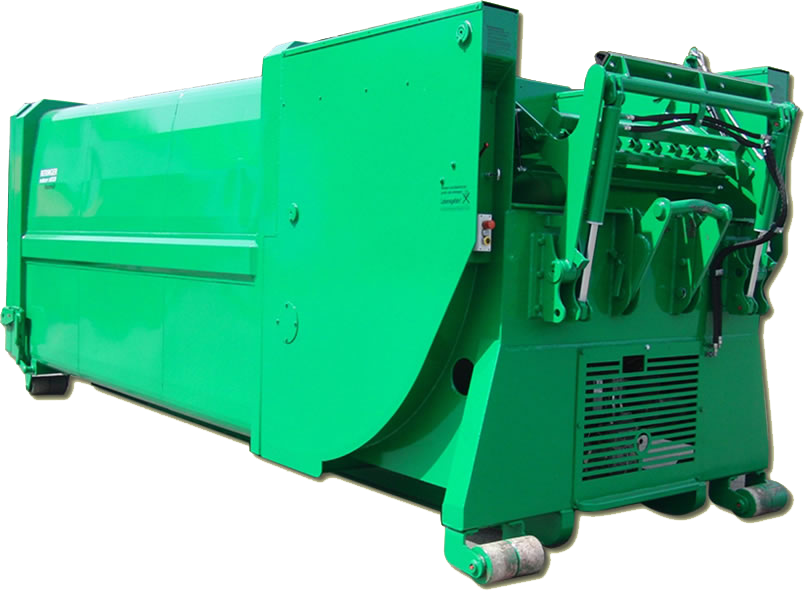

Products - Compactors Pendulum compactor x6 Dual Power "wet waste specs"

  • Mobile compactor for hook-lift systems
  • With electric engine and diesel engine for operation with and without electric power supply
  • Smoothline construction, conical shape
  • Control panels safely installed on left and right side
  • “wet waste” fully liquid proof
  • Header and body welded in one piece
  • Feed opening 1380 x 1840 mm
  • the compactor is especially designed for compacting of waste with high liquid quote (e.g. kitchen waste, fruits and vegetables)
  • suitable for BERINGER mobile bin lifter
  • Primed and coated in RAL colour of your choice

Standard equipment

  • lid installed front sides
  • automatic phase inverter relay
  • cleanout door liquid proof
  • 80 % fill level signal

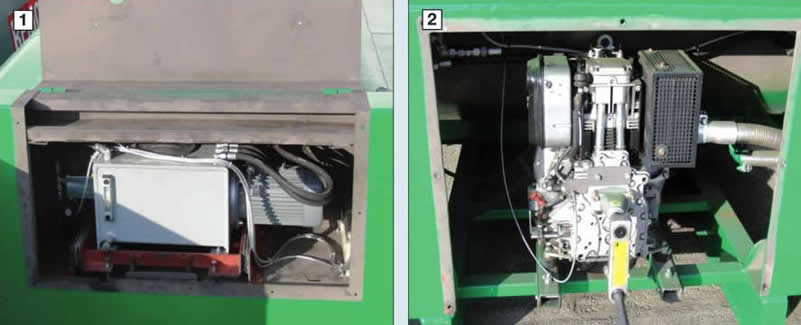

  1. Electric Engine
  2. Diesel Engine
